The X7 fingerprint keypad door lock offers a convenient and secure lock system solution that adopts the latest and most advanced fingerprint lock technologies. The fingerprint sensor in the lock is combined with the touch active sensor. This feature allows an easy and fast fingerprint entry--one touch on the fingerprint sensor unlocks. The lock is also equipped with a standard 12-key touchscreen. The keypad allows a user to unlock using a user code.
Three ways to unlock: fingerprint, user code, or key.
Up to 100 fingerprint users could be enrolled in the system.
Up to 100 user codes could be programmed into the system.
Support code partial match, you may input any prefixes and suffixes number.
Individual fingerprint user and user code deletion.
Build-in touch active sensor: one touch to unlock.
Self-learning ability: fingerprint template is updated after every fingerprint entry.
Two ways to login the system: programming code or administrator fingerprint.
Memory function: “power run-out” or “system reset” will not cause the loss of registered fingerprint(s) and user code(s).
“Schlage C key” as an override key.

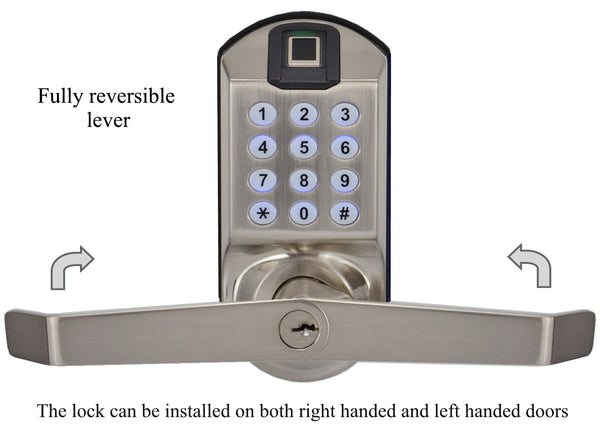

Reversible lever: lock fits both left-handled and right-handed door.
Reversing lever controlled by key.
9V battery may be attached as an additional power source.
Low battery alert.
Double-shell heavy duty construction design.
Semiconductor Fingerprint sensor: The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.
Standard 12-key keypad.

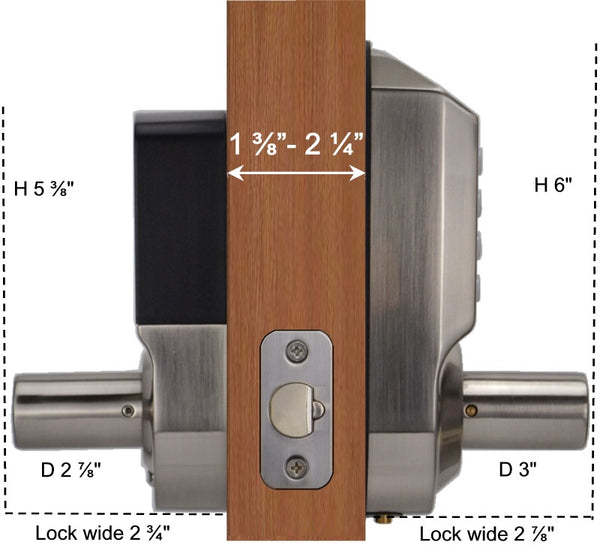

Adjustable backset 2 ⅜” or 2 ¾”.
Fit door thickness between 1 ¼” and 2 ¼”.
Operation temperature from -4°F to 151°F (-20°C to 66°C).
Powered by 4 AA Alkaline batteries (NOT included).
Note: The lock is non-weatherproof, Designed for INTERIOR door. Please search scyan X9 or X5 for exterior door lock.
